Gravity conveyor medium use
Gravity conveyor 1.9 po Dia. X 16 Ga 1.9 po Dia. X 9 Ga
PERMANENT OR TEMPORARY LINES

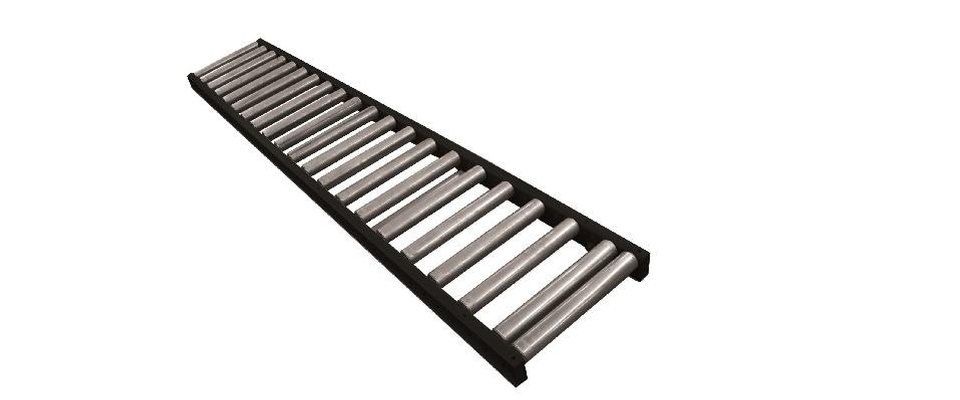

Gravity Roller conveyors are used to convey packages on permanent or temporary lines.![](DATA/MEDIA/6E98E285-155D-1E18-0D1B1ECB9051A4F1_Format960~v~Gravity_Conveyor__Triopac.jpg)
-

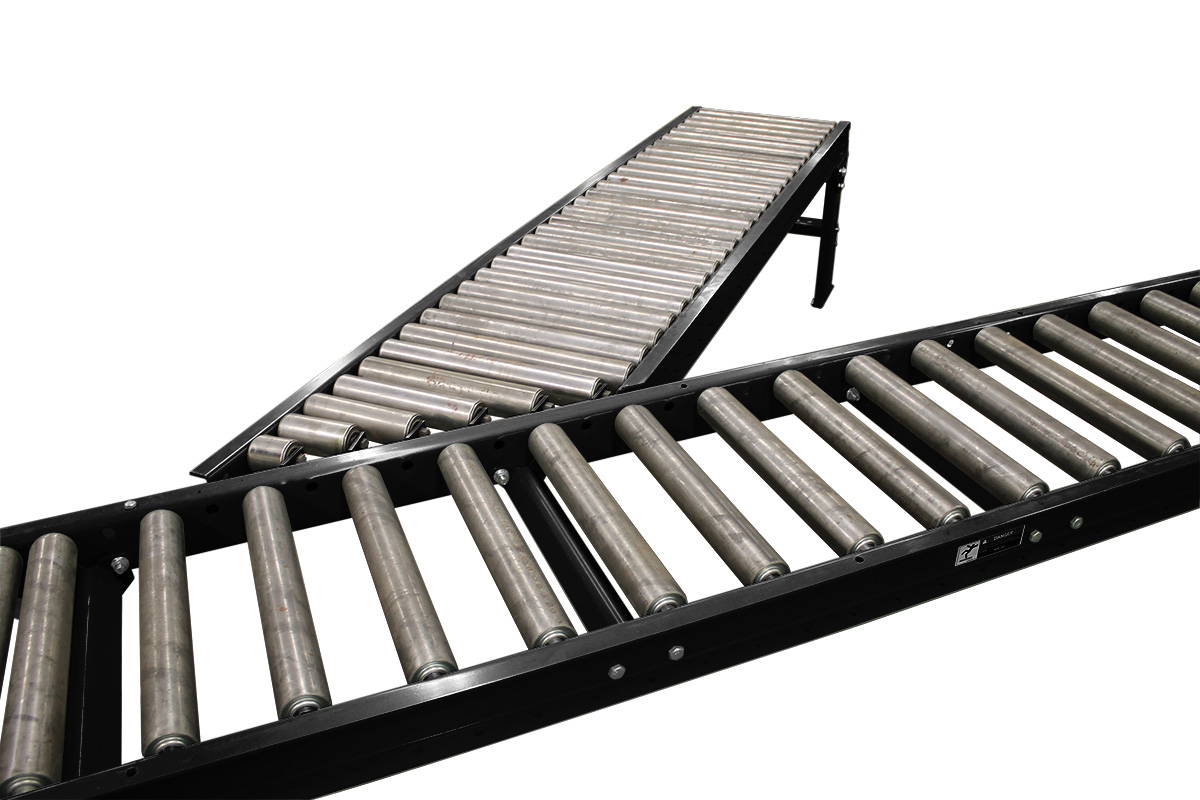

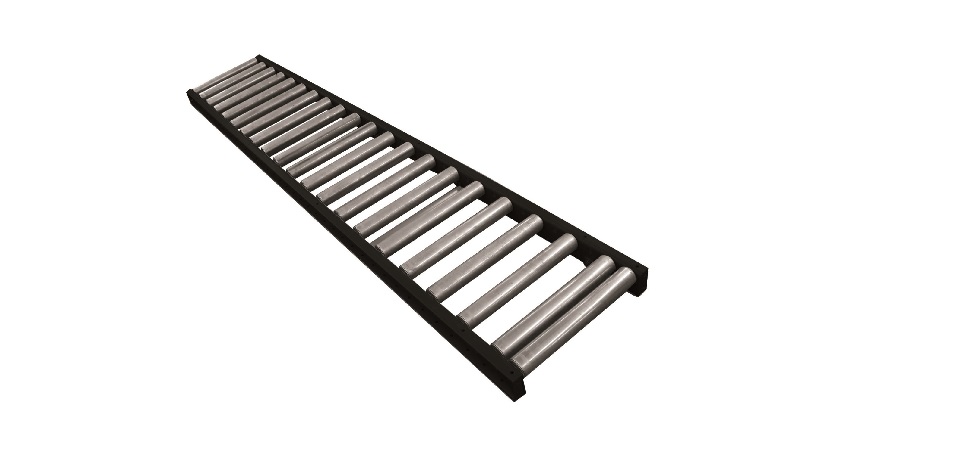

19SR / 19GSR / 199SR Models - Straight Gravity Conveyor 1.9 po Dia. X 16 Ga 1.9 po Dia. X 9 Ga
- Gravity Roller conveyors are used to convey packages on permanent or temporary lines in warehousing activities, shipping department, assembly areas, etc. Majority of products will convey with a minimum amount of pitch.
- FRAME–3 1/2 in. or 4 1/2 in. deep x 1 1/2 in. flange x 10 ga. powder painted formed steel channel with bolt-in cross members.
- WIDTHS–Between Rail Width: 13 in., 15 in., 17 in., 19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in., and 39 in.
- LENGTHS–5 ft. and 10 ft. straight sections.
- ROLLERS–19-SR 1.9 in. dia. x 16 ga. unplated or galvanized steel tubing; 199-SR 1.9 in. dia. x 9 ga. unplated steel tubing. Bearings are labyrinth sealed and grease packed.
- CAPACITY–See Load Capacity Chart this page

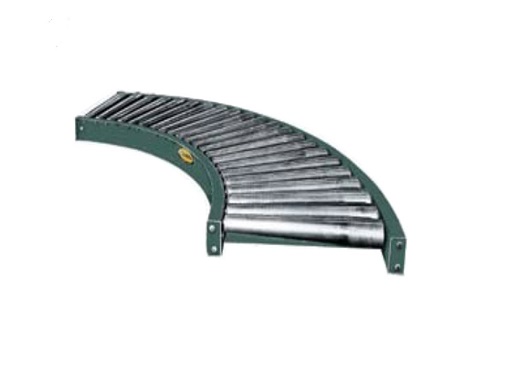

199SRC / 19SRC/ 19GSRC Models - Curve Gravity Conveyor 1.9 po Dia. X 16 Ga. 1.9 po Dia X 9 Ga
- Gravity Roller curves add to the versitility of straight conveyors. Curves provide smooth product flow with minimum amount of pitch based on weight and size. Guard rails may be added for product protection. Some curves provided with tapered tread rollers to maintain product orientation.
- FRAME–3 1/2 in. or 4 1/2 in. deep x 1 1/2 in. flange x 10 ga. powder painted formed steel channel with bolt-in cross members
- WIDTHS–Between Rail Width: 13 in., 15 in., 17 in., 19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in., and 39 in.
- CURVES– 30°, 45°, 60° and 90° with 32 1/2 in. inside radius for widths up to 27 in., 48 in. inside radius for 31 in. to 39 in. between rail widths.
- ROLLERS–(Straight) “199SRC” 1.9 in. dia. x 9 ga. unplated steel tubing. Bearings are labyrinth sealed and grease packed.
- CAPACITY– Same per foot capacity as straight sections. See charts previous page.
19SRCT Model - Tapered Unplated Gravity Roller Curve 1.9 in. Dia x 16 Ga.
- FRAME–3 1/2 in. or 4 1/2 in. deep x 1 1/2 in. flange x 10 ga. powder painted formed steel channel with bolt-in cross members.
- WIDTHS–Between Rail Width: 13 in., 15 in., 17 in., 19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in., and 39 in.
- CURVES– 30°, 45°, 60° and 90° with 32 1/2 in. inside radius for widths up to 27 in., 48 in. inside radius for 31 in. to 39 in. between rail widths.
- ROLLERS–(Tapered) “19-SRCT” 2 1/2 in. dia. tapered to 1 11/16 in. dia. x 14 ga. unplated steel tubing. Bearings are grease packed
- CAPACITY– Same per foot capacity as straight sections. See charts previous page.
19SRS / 19GSRS / 199SRS Models - 1.9 in. Dia. Gravity Roller Spur
- Gravity Roller spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. They are ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.
- FRAMES–3 1/2 in. deep x 1 1/2 in. flange x 10 ga. powder painted, formed steel channel with bolt-in cross members on 30° & 45° spurs; welded cross members on 90° spurs.
- WIDTHS–Between Rail Width: 13 in., 15 in., 17 in., 19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in., and 39 in.
- ROLLERS–“19-SRS” 1.9 in. dia. x 16 ga. and “199-SRS” 1.9 in. dia. x 9 ga. unplated steel tubing. Bearings are labyrinth sealed and grease packed.
- CAPACITY–Same per foot capacity as straight sections. See Gravity Roller Conveyor (1.9 in dia. x 9 & 16 ga.) charts.
-
