Gravity light use

 Steel or aluminum construction

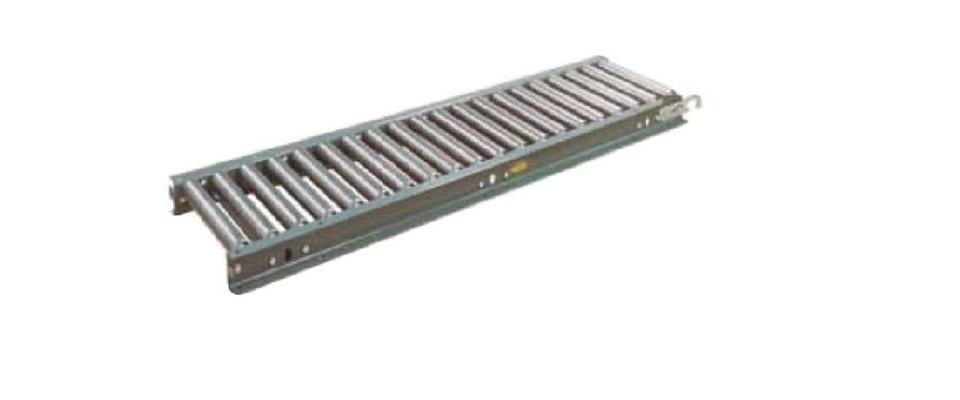

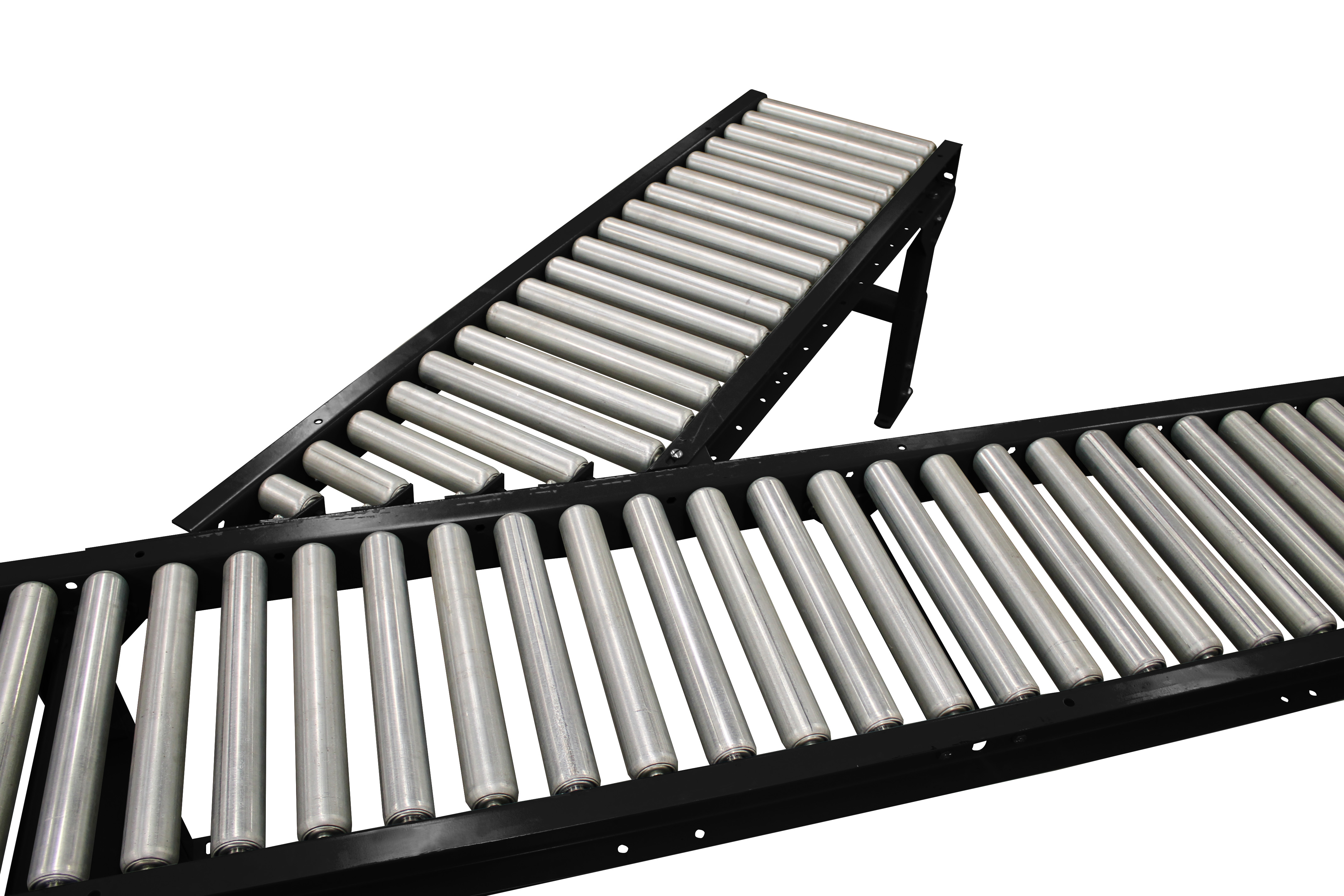

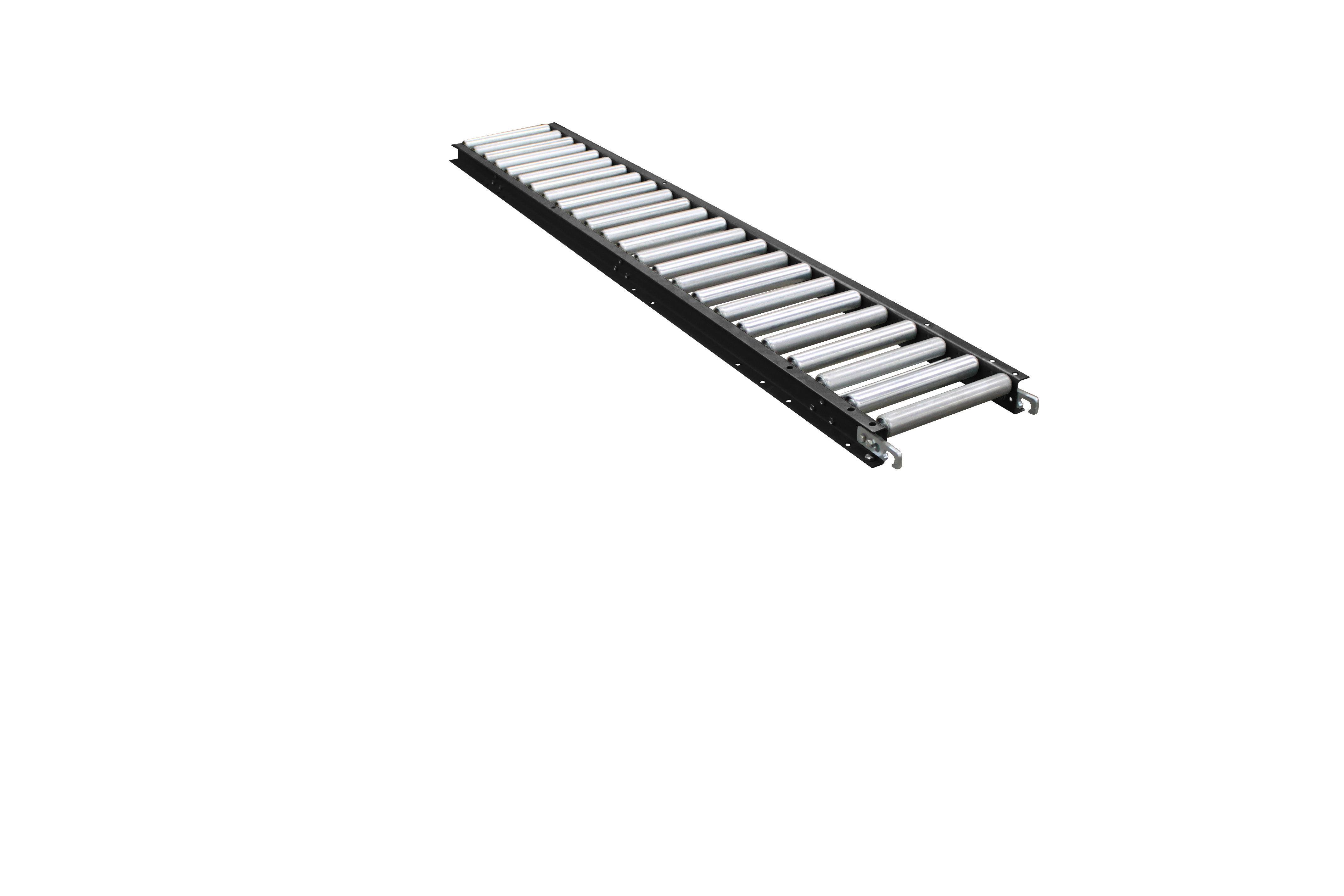

SSR / SAR Model - 1-3/8 in. Dia. x 18 Ga. Gravity Roller

• 1-3/8 in. Dia. gravity roller conveyor is used to carry lightweight packages or when operating requires lightweight sections.
• Frame–2 1/2 in. deep x 1in. flangex12ga.powder
• LENGTHS–5 ft. and 10 ft. straight sections
• WIDTHS–12in.,15in.,18in. and 24in.overall.
• CAPACITY–See Load Capacity Chart in technical sheet.

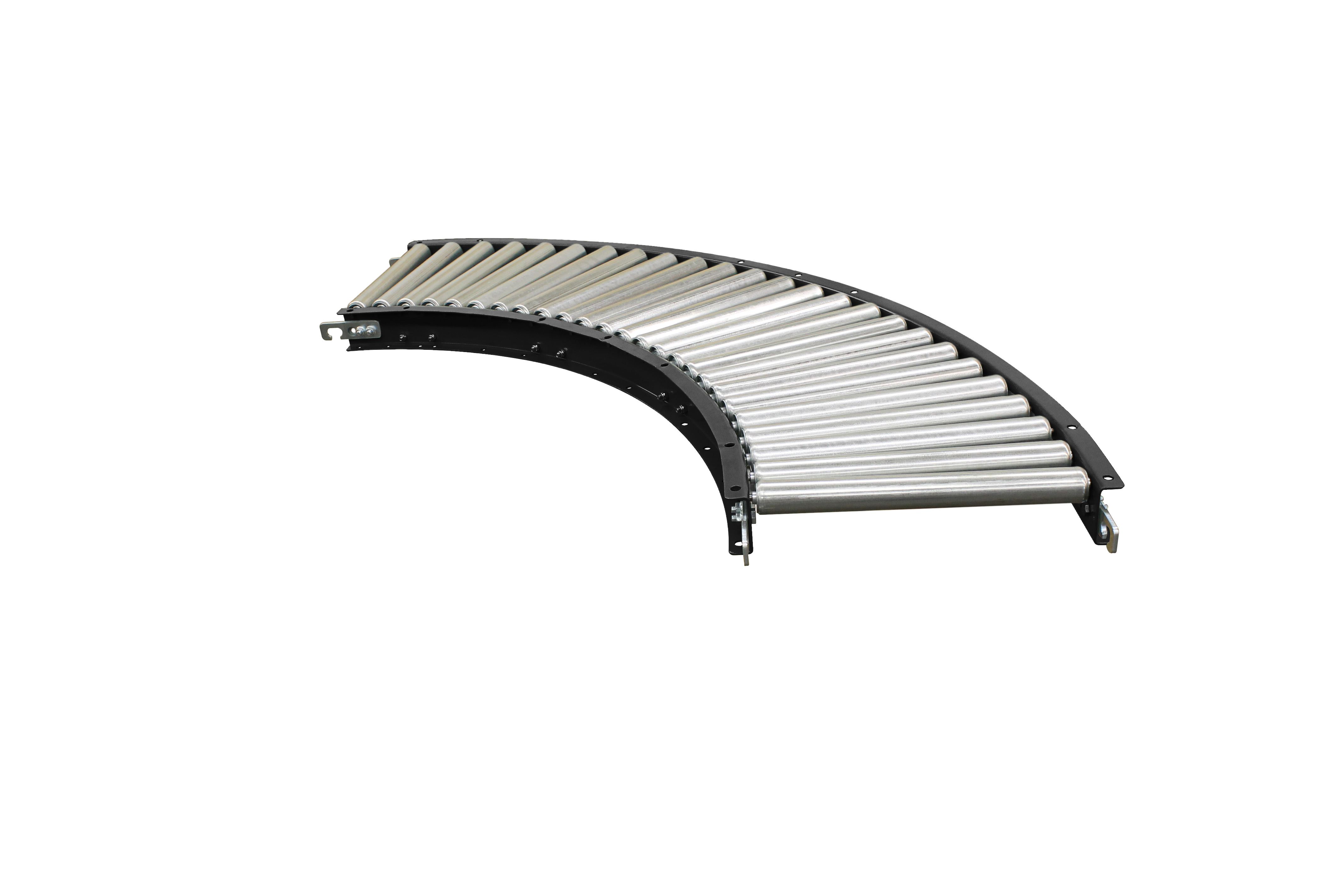

SSRC-SARC-SSRCT Model - 1-3/8 in. Dia. x 18 Ga. Curve Roller Conveyor

• Gravity Roller Curves add to the versatility of straight conveyors. Curve provide smooth product flow through turns. Curves will convey products with minimum amount of pitch based on weight and size. Guard rails (optional item) may be added for product protection.
• FRAME–2 1/2 in. deep x 1 in. flange x 12 ga. powder painted formed steel or 1/8 in. heat-treated aluminum channel with bolt-in cross members.
• WIDTHS–12in.,15in.,18in., & 24in.overall.
• CAPACITY–Same per foot capacity as straight sections. See technical chart.

SSRS / SARS Model - 1-3/8 in. Dia. Gravity Roller Spur

• Gravity Skate wheel Spurs are used to transfer products from one conveying line onto another. They can be used in merging or diverging applications. Ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.
• FRAME–2 1/2 in. deep x 1 in. flangex12ga.powderpaintedformedsteelor 1/8 in. heat-treated aluminum channel with bolt-in cross members.
• WIDTHS–12in.,15in.,18in., & 24in.overall.
• CAPACITY–Same per foot capacity as straight sections. See Gravity Roller Conveyor.
