Gravity Skatewheel (straight, curve, merging or diverging applications)

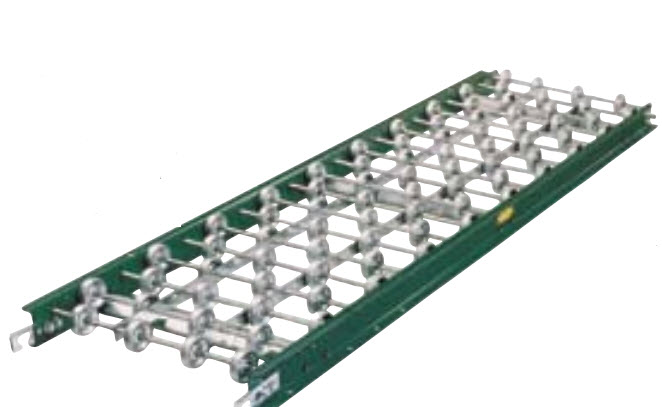

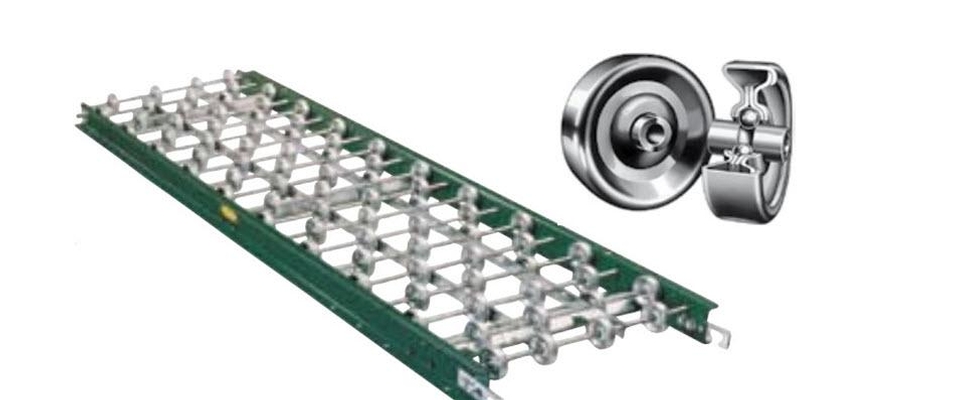

SW / AW Model - Straight Gravity Skatewheel

• Gravity Skatewheel conveyor is ideally used to convey lightweight packages or when operation requires lightweight sections. Skatewheel is useful in setting up temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.
• FRAME–2 1/2 in. deep x 1in. flangex12ga. powder painted formed steel or 1/8 in. heat-treated aluminum channel with bolt-in cross members.
• WIDTH–12in.,15in.,18in., and 24 in. overall.
• ROLLER: 1-15/16" O.D. steel or aluminum wheels
• LENGTHS–5ft. & 10ft. straight sections.
• CAPACITY–See Load Capacity Chart

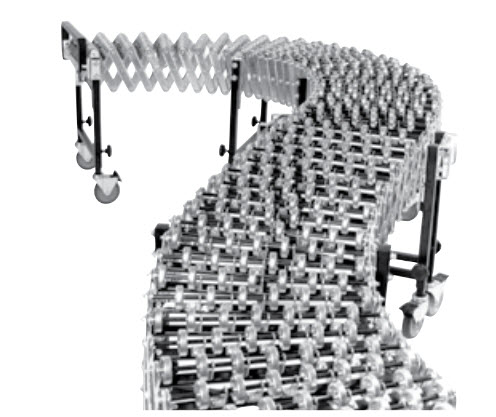

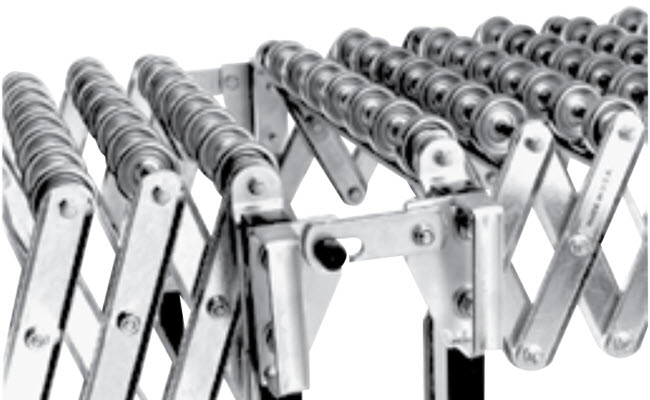

FX-200 Model - Heavy Duty Flexible Extendible Skatewheel

• A proven performer for trailer loading and unloading. Ideally suited for packaging, shipping and flexible assembly lines. Order optional leg connect brackets to lock units together.
• FRAME–Flexible and extendible.
• OVERALL WIDTHS: 18" & 24"
• WHEELS– Skatewheels 1.9in.dia. with 1/4 in.bore.
• LENGTHS–12ft.and24ft.
• CAPACITY: 200 lbs. per linear foot

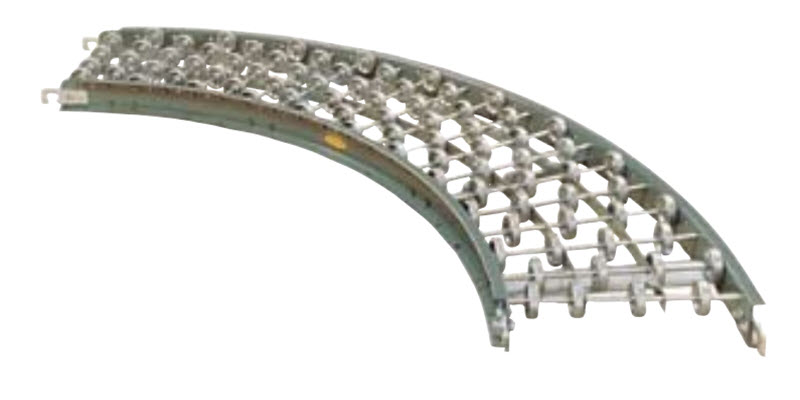

SWC / AWC Model - Gravity Skatewheel Curve

• Gravity Skatewheel Curves add to the versatility of straight conveyors and provide excellent package orientation because of the differential action of the wheels. Curves will convey product with minimum amount of pitch based on weight and size.
• FRAME–2 1/2 in. deep x 1in. flangex12ga. powder painted formed steel or 1/8 in. heat-treated aluminum channel with bolt-in cross members.
• WIDTHS–12in.,15in.,18in., & 24in.overall.
• WHEELS–115/16 in. O.D. ball bearings run in hardened raceway with life-time lubrication. Corrosion resistant aluminum or zinc-coated steel.
• AVAILABLE IN 30°, 45°, 60° & 90° curves 48" outside radius (12", 15", & 18" widths) 60" outside radius (24" width)
• CAPACITY–Same per foot capacity as straight sections. See charts on previous page

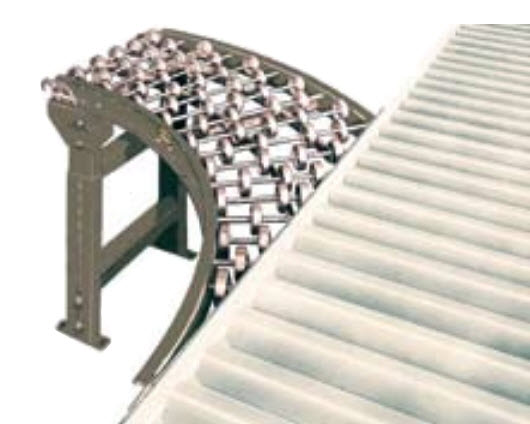

SWS / AWS Model - Gravity Skatewheel Spurs - 1 3/8 in. Dia.

• Gravity Skatewheel Spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. They are ideally used where numerous lines must transfer onto a main conveyor line from work stations or other similar operations.
• FRAME–2 1/2 in.deepx1in. flangex12ga. powder painted formed steel or 1/8 in. heat-treated aluminum channel with bolt-in cross members.
• WIDTHS–12in.,15in.,18in., & 24in.overall.
• WHEELS–115/16 in. O.D. ball bearings run in hardened raceway with life-time lubrication. Corrosion resistant aluminum or zinc-coated steel.
• CURVES–Curves have 48 in outside radius on 12in.,15in.,18in. widths and 60in outside radius on 24in. width.
• CAPACITY–Same per foot capacity as straight sections. See charts on previous page.
• AVAILABLE IN 30°, 45° & 90° spurs right or left hand available
