Minimum pressure

Live Roller Conveyor (V-Belt)

LIGHT TO MEDIUM PACKAGES, BOXES AND CARTONS

The simplest method ever devised for accumulating cartons, boxes, etc. with minimum pressure.

Minimum pressure

  • LIGHT DUTY

    138-ACC Model - Live Roller Conveyor (V-Belt)

    • BED–Roller bed with 13/8 in. dia. roller x18ga. galvanized tube and 5/16 in. HRS hex shaft spaced every3in.and13/8 in. dia. Pressure roller x 18 ga. Galvanized tube spaced every 6 in. Mounted in 6 1/2 in.x12ga. Powder painted formed steel channel frame bolted together with butt couplings.
    • OVERALL FRAMEWIDTH : 12" 15" 18" 24"
    • SPEED REDUCTION–Sealed worm gear C-Face speed reducer. No.50 roller chain to drive shaft.
    • MOTOR–1/2 HP–208/230/460/575V–3Ph.60 Hz. Totally Enclosed C-Face.
    • CONVEYING SPEED–Constant65FPM.  CAPACITY–Maximum load per linear foot of conveyor 50 lbs.
    • NOT TO EXCEED capacity in chart.

    138-LRS Model - Live Roller Spur Conveyor, Light Duty Spur (V-Belt)

    • BED–Roller bed with 13/8 in. dia. roller x18ga.galvanized tube and 5/16 in. HRS hex shafts (12in. thru18in. OAW) and 2 1/2 in. dia. Tapered to 111/16 in. dia. rollerx16ga.galvanizedtubeand1.9in. dia. Straight rollersx16ga.galvanizedtube7/16 in. HRS hex shafts (24in. OAW). Mounted in 61/2in.x12ga.powderpaintedformedsteel channel frame.
    • OVERALL FRAME WIDTH: 12" 15" 18" 24"
    • MOTOR–1/2 HP–208/230/460/575V–3PH.60 Hz. Totally Enclosed.
    • CONVEYING SPEED–Constant65FPM.
    • CAPACITY–150lbs. Total distributed live load.

    138-LRC Model - Live Roller Conveyor, Light Duty Curve (V-Belt)

    • BED–(LRC) Roller bed with 13/8 in. dia. roller x18ga.galvanized tube and 5/16 in. HRS hex shafts (12in.–18in. OAW) and 21/2in.dia. taperedto111/16 in. dia. Roller x 16ga.galvanized tube and 1.9 in. dia. Straight rollersx16ga.galvanizedtube7/16 in. HRS hex shafts(24in. OAW).Mounted in 61/2 in.x12gapowderpaintedformedsteel channel frame.
    • OVERALL FRAME WIDTH: 12" 15" 18" 24"
    • MOTOR–1/2 HP–208/230/460/575V–3PH.60 Hz. Totally Enclosed.
    • CONVEYING SPEED–Constant 65 FPM.
    • CAPACITY–150lbs. total distributed live load.

    138-LRSS Model - Live Roller Straight Spur Conveyor, Light Duty (V-Belt)

    • BED–Roller bed with 13/8 in. dia. roller x18ga.galvanized tube and 5/16 in. HRS hex shafts (12in. thru18in. OAW) and 2 1/2 in. dia. taperedto111/16 in. dia. rollerx16ga.galvanizedtubeand1.9in. dia. Straight rollers x 16ga. galvanizedtube7/16 in. HRS hex shafts(24in. OAW). Mounted in 61/2in. x 12 ga. Powder painted formed steel channel frame.
    • OVERALL FRAME WIDTH: 12" 15" 18" 24"
    • MOTOR–1/2 HP–208/230/460/575V–3PH.60 Hz. Totally Enclosed.
    • CONVEYING SPEED–Constant 65 FPM.
    • CAPACITY–150lbs. total distributed live load.

    MEDIUM DUTY

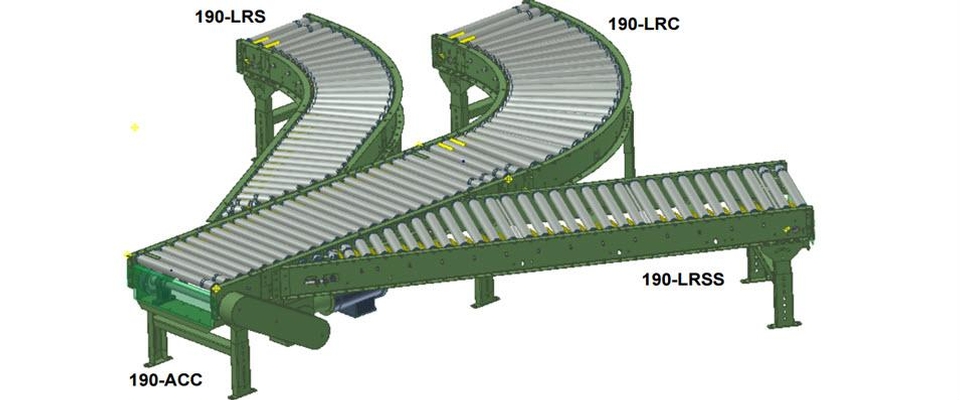

    190-ACC Model - Live Roller Conveyor (V-Belt)

    • BED–Roller bed with 1.9in.dia. rollerx16ga.galvanizedtubespacedevery3in.and1.9in.dia. pressure rollers x 16ga.galvanizedtube spaced every 6 in. Mounted in 6 1/2 in. x 12ga.powder painted formed steel channel frame bolted together with butt couplings.
    • OVERALL FRAME WIDTH : 16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • MOTOR–1/2 HP–208/230/460/575V–3Ph.60 Hz. Totally Enclosed C-Face.
    • CONVEYING SPEED–Constant25-120FPM.
    • CAPACITY–Maximum load per linear foot of conveyor150lbs.
    • NOT TO EXCEED capacity in chart

    190-ACZ Model - Belt driven Roller Conveyor

    • BED–Roller bed with 1.9 in. dia. roller x 16 ga. galvanized tube spaced every 3 in. and 1.9 in. dia. pressure roller x 16 ga. galvanized tube spaced every 6 in. Mounted in 6 1/2 in. x 12 ga. powder painted formed steel channel frame bolted together with butt couplings
    • OVERALL FRAME WIDTH: 16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • MOTOR–1/2 HP–208/230/460/575V–3 PH. 60 Hz. Totally Enclosed C-Face.
    • CONVEYING SPEED–Constant 65 FPM.
    • CAPACITY–Maximum load per linear foot of conveyor 150 lbs.
    • NOT TO EXCEED capacity in chart.

    190-LRC Model - Live Roller Conveyor, Medium Duty, Spur (V-Belt)

    • BED–Roller bed with 2 1/2 in. dia. tapered to 1 11/16 in. dia. x 14 ga. galvanized and 1.9 in. dia. roller x16ga.galvanizedtube. Mounted in 6 1/2 in. x12ga.powderpaintedformedsteel channel frame.
    • OVERALL FRAME WIDTH: 16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • MOTOR–1/2 HP–208/230/460/575V–3PH.60 Hz. Totally Enclosed.
    • CONVEYING SPEED–Constant 65 FPM.
    • CAPACITY–500lbs. total distributed live load.

    190-LRSS Model - Live Roller Straight Spur Conveyor (V-Belt)

    • BED–Roller bed with 1.9in.dia. rollerx16ga.galvanizedtubespacedevery3in. Mounted in 61/2 in.x12gapowderpaintedformedsteel channel frame.
    • OVERALL FRAME WIDTH: 16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • MOTOR–1/2 HP–208/230/460/575V–3PH.60 Hz. Totally Enclosed.
    • CONVEYING SPEED–Constant65FPM.
    • CAPACITY–500lbs. total distributed live load

    190-LRS Model - Live Roller Spur Conveyor, Medium Duty Spur (V-Belt)

    • BED–Roller bed with 21/2in.dia. taperedto111/16 in. dia. rollerx14ga.galvanizedand1.9in.dia. roller x16ga.galvanizedtube. Mounted in 6 1/2 in. x12ga.powderpaintedformedsteel channel frame.
    • OVERALL FRAME WIDTH: 16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
    • MOTOR–1/2 HP–208/230/460/575V–3PH.60 Hz. Totally Enclosed.
    • CONVEYING SPEED–Constant65FPM.
    • CAPACITY–500lbs. total distributed live load
