Heavy Duty Horizontal Slat

Heavy Duty Horizontal Slat conveyor

TO CONVEY HOT, OILY ITEMS AND HEAT DRYING PROCESSES

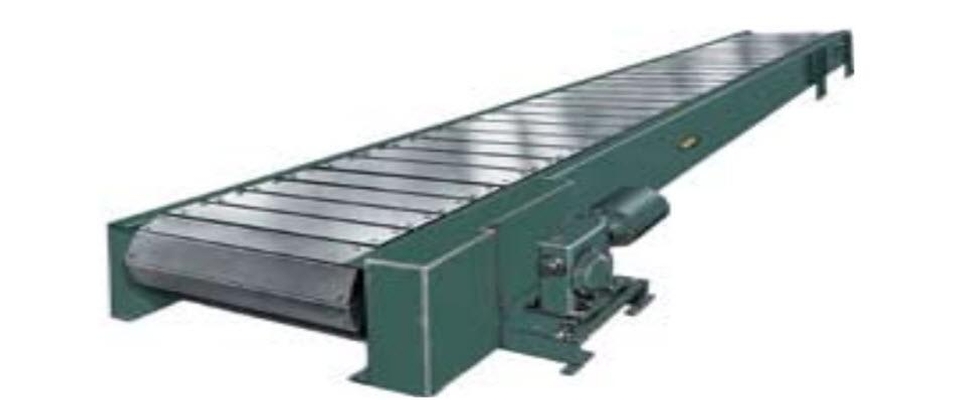

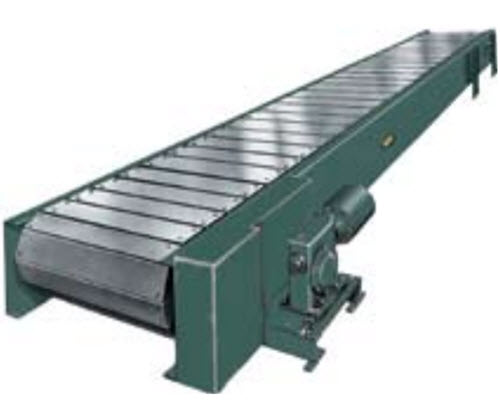

The Model SL steel belt slat conveyor is rugged in design providing lasting, dependable performance.

Heavy Duty Horizontal Slat

  • SL Model - Heavy Duty Horizontal Slat Conveyor

    The Model SL steel belt slat conveyor is rugged in design providing lasting, dependable performance. It can be used to convey hot, oily parts or to move items through heat drying processes. It can also be used for assembly line and production operations.

    • 17" deep x 10 ga. formed steel channel frame powder painted
    • Bed Widths 36",42",48",54"

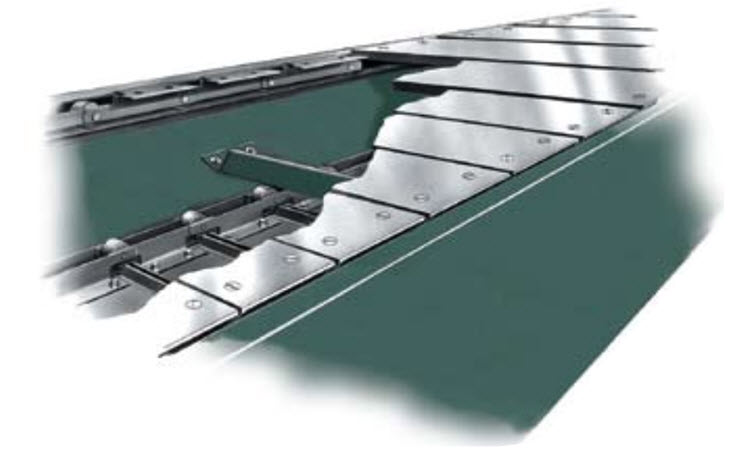

    • Slat: Formed steel 5-3/4" x 1-1/2" x 7 ga. channel
    • Motor 2 HP standard - 3 HP max.
    • 6" pitch bushed roller steel chain with 2" dia. high capacity roller bearing
    • Adjustable SLS-Type Floor Supports Available
    • Capacity Maximum load per linear ft. of conveyor 1400 lbs. not to exceed rated capacities

    1. Heavy Duty Horizontal Slat Conveyor - SL
