Chain Conveyor for pallets (transport)

Horizontal chain conveyor for pallets

INTENSE HANDLING PALLETS - EXTREME HEAVY DUTY

Our horizontal chain conveyor models allow intensive use of pallets with a weight between 5,800 lbs. and 12,000 lbs maximum.

Chain Conveyor for pallets (transport)

  • MEDIUM DUTY

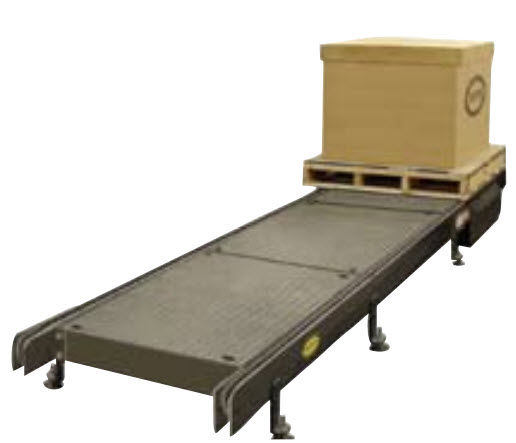

    DC-62 Horizontal Chain for pallets 2 strand

    • FRAME – 6 in. x 7 ga. powder painted formed steel angle with 1 1/2 in. x 3/16 wall, chain support tube. 4 ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42” and 48”
    • MOTOR –1 1/2 HP – 208/230/460/575V– 3 PH. 60 HZ. gearmotor, located underneath in 5 ft. long module.
    • CONVEYING SPEED –35 FPM.
    • CAPACITY–6000 lbs. maximum at 35 FPM (1 1/2 HP maximum). NOT TO EXCEED CAPACITY IN CHART.

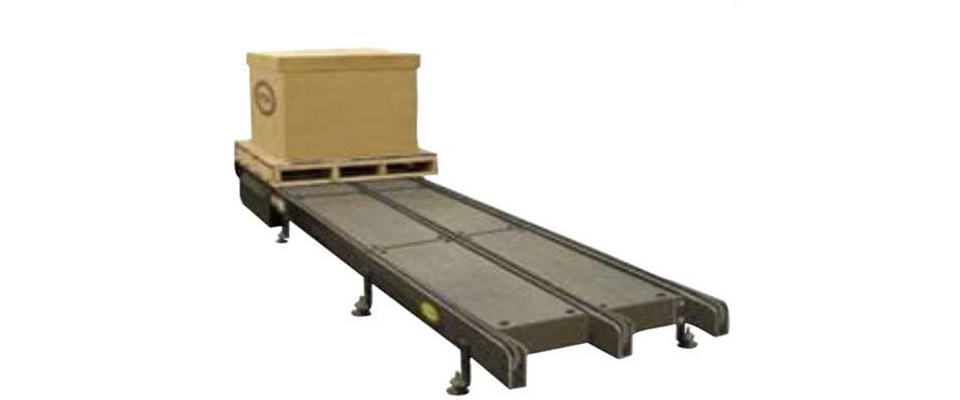

     DC-63 -Horizontal Chain for pallets 3 strand

    • FRAME – 6 in. x 7 ga. powder painted formed steel angle with 1 1/2 in. x 3/16 wall, chain support tube. 4 ga. formed coupling channels located at infeed and discharge ends of each module.
    • MOTOR –1 1/2 HP – 208/230/460/575V– 3 PH. 60 HZ. gearmotor, located underneath in 5 ft. long module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42” and 48”
    • CONVEYING SPEED –35 FPM.
    • CAPACITY–5800 lbs. maximum at 30 FPM (1 1/2 HP maximum). NOT TO EXCEED CAPACITY IN CHART.

    HEACY DUTY

     DC82 - Heavy Duty Horizontal Chain for pallets 2 strand

    • FRAME – 6in.x4ga.powderpaintedformedsteelangle with 2in.x 1/4 in. thick wall, chain support tube.4ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER  - 24”,27”,30”,33”,36”,39”,42”, 48” and 51”
    • MOTOR –2 HP – 208/230/460/575V– 3PH.60 HZ. gearmotor, located underneath in 5ft. long module.
    • CONVEYING SPEED –30FPM.
    • CAPACITY–5800lbs. maximum at30FPM (2 HP maximum). NOTTO EXCEED CAPACITYIN CHART.

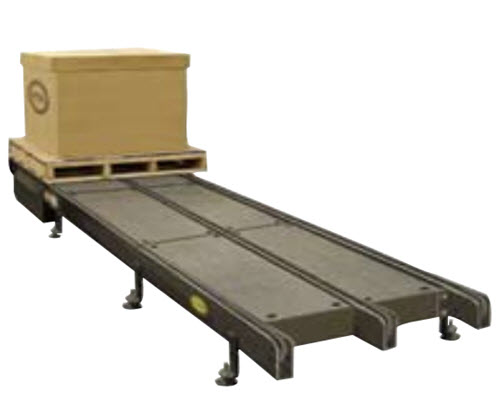

    DC83 - Heavy Duty Horizontal Chain for pallets 3 strand

    • FRAME – 6in.x4ga.powderpaintedformedsteelangle with 2in.x 1/4 in. thick wall, chain support tube.4ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42”, 48” and 51”
    •  MOTOR –2 HP – 208/230/460/575V– 3PH.60 HZ. gearmotor, located underneath in 5ft. long module
    • CONVEYING SPEED –30FPM.
    • CAPACITY–6000lbs. maximum at30FPM (2 HP maximum). NOTTO EXCEED CAPACITYIN CHART

    1.

    3. Horizontal Chain Conveyor Pallets DC82

    4. Horizontal Chain Conveyor Pallets DC83
