Gravity heavy use

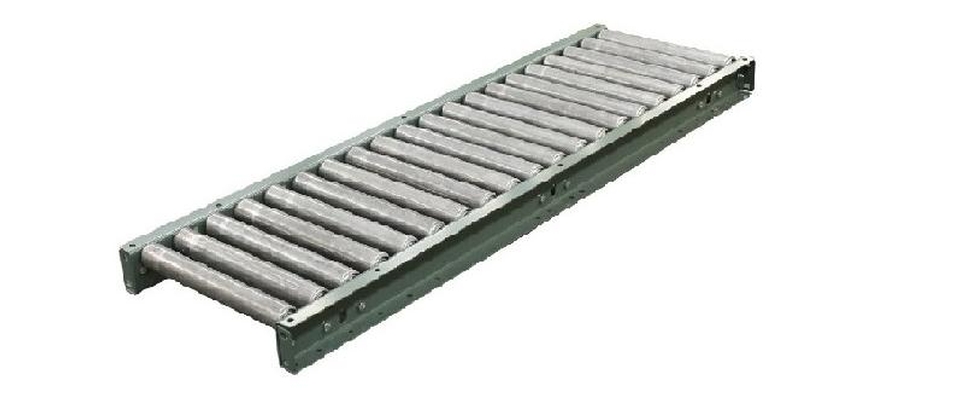

25SR / 26SR Models - Straight Roller Conveyors 2 1/2 po Dia. X 11 Ga. 2 5/8 po Dia. X 7 Ga

• Gravity Roller conveyor are used to convey packages on permanent or temporary lines in warehousing activities, shipping department, assembly areas, etc. Majority of products will convey with a minimum amount of pitch.
• FRAME–4 in. deep x 1 5/8 in. flange x 4 ga. Powder painted formed steel channel with bolt-in cross members set high, welded cross members set low.
• WIDTHS–Between Rail Width 13 in., 15 in., 17 in., 19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in., and 39 in., 43 in., 47 in., 51 in. & 55 in.
• ROLLERS– 25-SR 2 1/2 in. dia. x 11 ga. steel tubing. Bearings are labyrinth sealed and grease packed.
• ROLLERS– 26-SR 2 5/8 in. dia. x 11 ga. steel tubing. Bearings are labyrinth sealed and grease packed.
• CAPACITY–See Load Capacity Chart

25SRC / 26SRC Models - Roller Conveyor 2 1/2 po Dia. X 11 Ga. 2 5/8 po Dia. X 7 Ga

Gravity Roller curves add to the versitility of straight conveyors. Curves provide smooth product flow with minimum amount of pitch based on weight and size. Guard rails may be added for product protection. Some curves provided with tapered tread rollers to maintain product orientation.

• Gravity Roller conveyor are used to convey packages on permanent or temporary lines in warehousing activities, shipping department, assembly areas, etc. Majority of products will convey with a minimum amount of pitch.
• FRAME–4 in. deep x 1 5/8 in. flange x 4 ga. Powder painted formed steel channel with bolt-in cross members set high, welded cross members set low.
• WIDTHS–Between Rail Width 13 in., 15 in., 17 in., 19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in., and 39 in., 43 in., 47 in., 51 in. & 55 in.
• ROLLERS– 25-SRC 2 1/2 in. dia. x 11 ga. steel tubing. Bearings are labyrinth sealed and grease packed.
• ROLLERS– 26-SRC 2 5/8 in. dia. x 11 ga. steel tubing. Bearings are labyrinth sealed and grease packed.
• CURVES–30°, 45°, 60°and 90° with 32 1/2 in. inside radius up to 27 in., 48 in. inside radius on 31 in. to 51 in. between rail widths.
• CAPACITY–See Load Capacity Chart

25SRCT Model - Tapered Roller Curve Conveyor 2-1/2 in. Dia.

• Heavy-duty gravity roller curve conveyor aids in alignment of packages, cartons.
• See technical sheet for specification

25SRS / 26SRS Models - Spur Conveyor 2-1/2 in. Dia. x 11 Ga. / 2-5/8 in. Dia. x 7 Ga.

• Gravity Roller spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. They are ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.
• FRAME–4 in. deep x 1 5/8 in. flange x 4 ga. powder painted formed steel channel with bolt-in cross members.
• WIDTHS–Between Rail Width 13 in., 15 in., 17 in., 19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in., 39 in., 43 in., 47 in., and 51 in.
• SPUR ANGLES–30°, 45° and 90° right or left hand applications, specify.
• ROLLERS–“25-SRS” 2 1/2 in. dia. x 11 ga. steel tubing. Bearings are labyrinth sealed and grease packed.
• CAPACITY–Same per foot capacity as straight sections. See Gravity Roller Conveyor (2 1/2 in. x 11 & 7 ga.) charts.

36SR Model - Straight Gravity Conveyor 3-1/2 in. Dia. x .300 Roller

• Hytrol heavy-duty roller conveyor Model 36-SR is designed and constructed to convey heavy loads, such as pallets, castings, etc. in steel industries and other manufacturing operations which require heavy-duty conveying equipment. Roller may be set high or low in conveyor frame depending on applications.
• FRAMES–Rollers set high or set low 5 in. x 6.7 lb. structural channel. Rollers set low 5 in. x 6.7 lb. structural channel, powder painted steel with welded cross members.
• WIDTHS–Between Rail Widths 7 in., 11 in., 15 in., 19 in., 23 in., 27 in., 31 in., 35 in., 39 in., 43 in., 47 in., and 51 in.
• LENGTHS–10 ft. and 5 ft. straight sections.
• ROLLERS–3 1/2 in. x .300 unplated rollers. Bearings with steel inner-shield seals are grease packed.
• CAPACITY–See Load Capacity Chart this page.
