Chain Conveyor for pallets (zero pressure)

Horizontal Chain Conveyor for pallets (zero pressure)

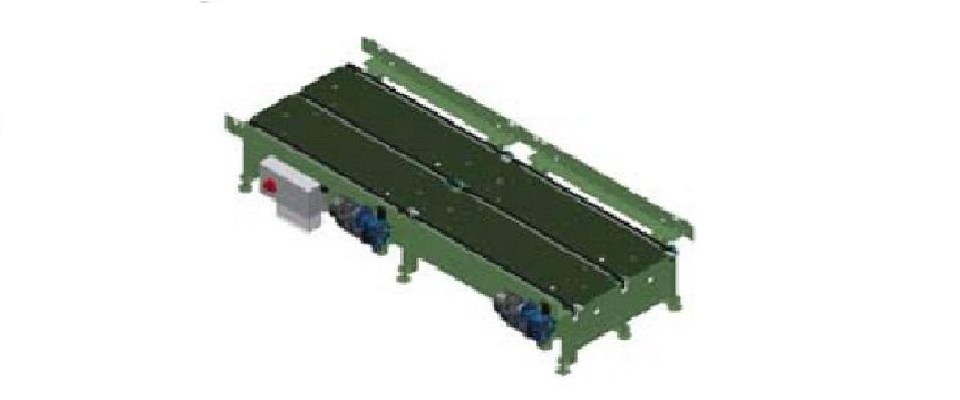

The model DCEZ is a drag chain conveyor designed to handle pallets. With EZLogic® accumulation module, pallets are accumulated with zero-back pressure reducing the possibility of collision that may result in product damage.

Chain Conveyor for pallets (zero pressure)

  • MEDIUM DUTY

    DCEZ-62 -Horizontal Chain for pallets 2 strand (EZLogic®)

    • FRAME – 6 in. x 7 ga. powder painted formed steel angle with 1 1/2 in. x 3/16 wall, chain support tube. 4ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42” and 48”
    • ACCUMULATION ZONES–36in.,42in.,48in.,54in.,60in., and 66in. long intermediate sections with EZLogic® Accumulation (Diffuse). Contact factory for other lengths. (Drive Section minimum 60in. long.)
    • MOTOR –1 1/2 HP – 230/460V– 3PH.60 HZ.gearmotor, located underneath in 5ft. long module.
    • CONVEYING SPEED –35FPM.
    • CAPACITY–12,000 lbs. maximum at 30 FPM (1 1/2 HP maximum). NOT TO EXCEED CAPACITY IN CHART.

    DCEZ-62D -Horizontal Chain for pallets 2 strand (EZLogic®)

    • FRAME – 11 1/8 in. x 7 ga. powder painted formed steel angle. 7 ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42” and 48”
    • ACCUMULATION ZONES–60 in. long sections with EZLogic® Accumulation.
    • MOTOR – 3/4 HP – 230/460/575V– 3 PH. 60 HZ. gearmotor, shaft mounted at discharge end of zone.
    • CONVEYING SPEED –30 FPM.
    • CAPACITY–3,000 lbs. maximum per zone at 30 FPM.

     DCEZ-63  - Horizontal Chain for pallets 3 strand (EZLogic®)

    • FRAME – 6 in. x 7 ga. powder painted formed steel angle with 1 1/2 in. x 3/16 wall, chain support tube.4ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42” and 48”
    • MOTOR –1 1/2 HP – 208/230/460/575V– 3PH.60 HZ.gearmotor, locatedunderneath in 5ft. long module.
    • CONVEYING SPEED –35FPM.
    • CAPACITY–11,000 lbs. maximum at 30 FPM (1 1/2 HP maximum). NOT TO EXCEED CAPACITY IN CHART.

    DCEZ-63D - Horizontal Chain for pallets 3 strand (EZLogic®)

    • FRAME – 11 1/8 in. x 7 ga. powder painted formed steel angle. 7 ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42” and 48”
    • ACCUMULATION ZONES–60 in. long sections with EZLogic® Accumulation
    • MOTOR – 3/4 HP – 230/460/575V– 3 PH. 60 HZ. gearmotor, shaft mounted at discharge end of zone.
    • CONVEYING SPEED –30 FPM.
    • CAPACITY–3,000 lbs. maximum per zone at 30 FPM.

    HEAVY DUTY

    DCEZ-82 -Heavy Duty Horizontal Chain for pallets 2 strand (EZLogic®)

    •  FRAME – 6 in. x 4 ga. powder painted formed steel angle with 2 in. x 1/4 in. wall, chain support tube. 4 ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42”, 48” and 51”
    • ACCUMULATION ZONES–36 in., 42 in., 48 in., 54 in., 60 in., and 66 in. long intermediate sections with EZLogic® Accumulation (Diffuse). Contact factory for other lengths. (Drive Section minimum 60 in. long.)
    • MOTOR –2 HP – 208/230/460/575V– 3 PH. 60 HZ. gearmotor, located underneath in 5 ft. long module.
    • CONVEYING SPEED –30 FPM.
    • CAPACITY–12,000 lbs. maximum at 30 FPM (2 HP maximum). NOT TO EXCEED CAPACITY IN CHART

     DCEZ-82D -Heavy Duty Horizontal Chain for pallets 2 strand (EZLogic®)

    •  FRAME – 12 in. x 4 ga. powder painted formed steel angle. 7 ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42”, 48” and 51”
    • ACCUMULATION ZONES–60 in. long sections with EZLogic® Accumulation.
    • MOTOR –1 HP – 230/460/575V– 3 PH. 60 HZ. gearmotor, shaft mounted at discharge end of zone.
    • CONVEYING SPEED –30 FPM.
    • CAPACITY–4,000 lbs. maximum per zone at 30 FPM.

    DCEZ-83  -  Heavy Duty Horizontal Chain for pallets 3 strand (EZLogic®)

    •  FRAME – 6 in. x 4 ga. powder painted formed steel angle with 2 in. x 1/4 in. wall, chain support tube.4ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42”, 48” and 51”
    • ACCUMULATION ZONES–36in.,42in.,48in.,54in.,60in., and66in. long intermediate sections with EZLogic® Accumulation (Diffuse). Contact factory for other lengths. (Drive Section minimum 60in. long.)
    • MOTOR –2 HP – 208/230/460/575V– 3 PH. 60 HZ. gearmotor, located underneath in 5 ft. long module.
    • CONVEYING SPEED –30FPM.
    • CAPACITY–12,000 lbs. maximum at 30 FPM (2 HP maximum). NOT TO EXCEED CAPACITY IN CHART.

      DCEZ-83D -  Heavy Duty Horizontal Chain for pallets 3 strand (EZLogic®)

    • FRAME – 12 in. x 4 ga. powder painted formed steel angle. 4 ga. formed coupling channels located at infeed and discharge ends of each module.
    • STRAND CENTER - 24”,27”,30”,33”,36”,39”,42”, 48” and 51”
    • ACCUMULATION ZONES–60 in. long sections with EZLogic® Accumulation.
    • MOTOR –1 HP – 230/460/575V– 3 PH. 60 HZ. gearmotor, shaft mounted at discharge end of zone.
    • CONVEYING SPEED –30 FPM.
    • CAPACITY–4,000 lbs. maximum per zone at 30 FPM.
