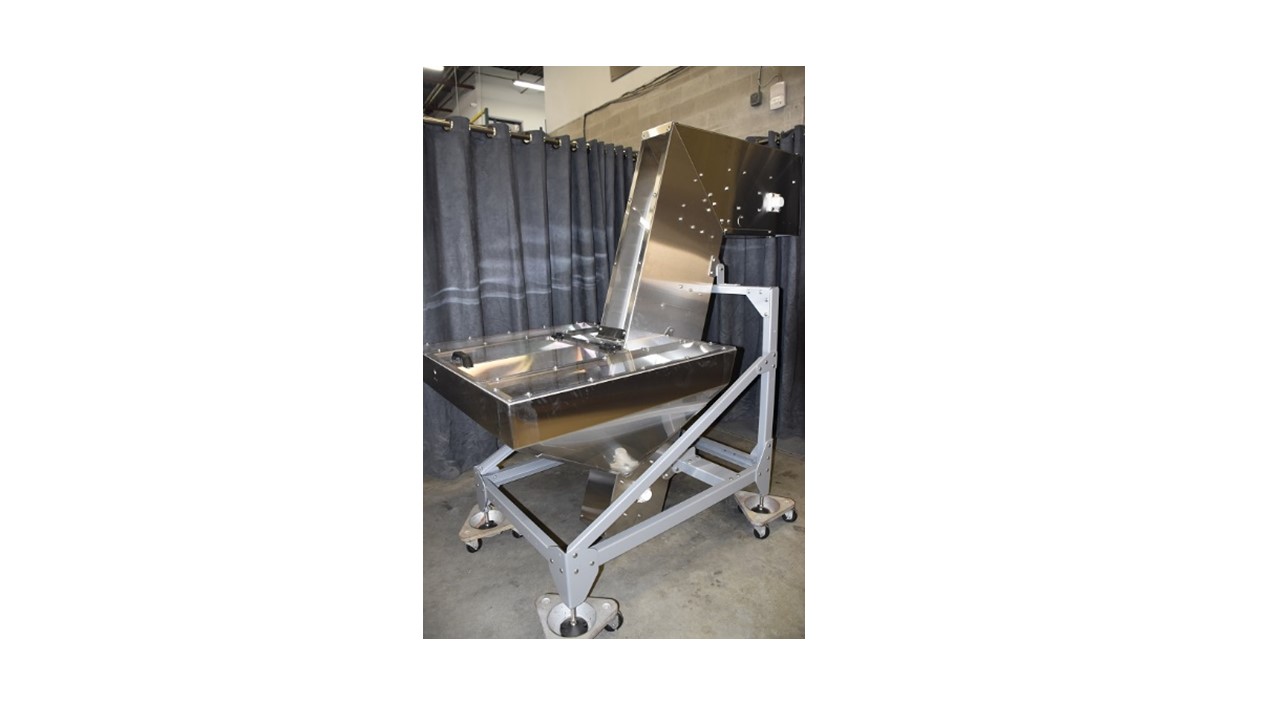

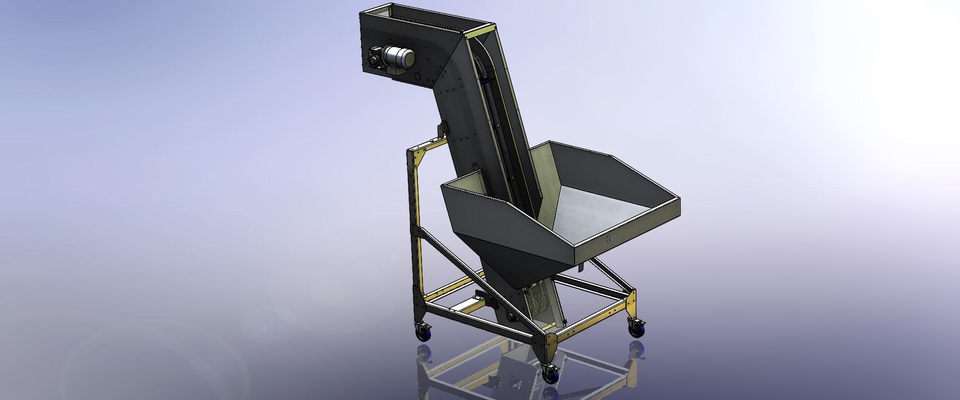

Elevator Conveyor with Hopper

Combination of an inclined conveyor and a hopper; Used to feed parts in bulk such as caps and plastic bottles to a sorter or an assembly machine; Available with a plastic belt; Hopper capacities ranging from 8 to 120 cubic feet; Models with 30 cubic feet or more are equipped with a bottom belt under the hopper; Construction as per selected models;

13-Hopper

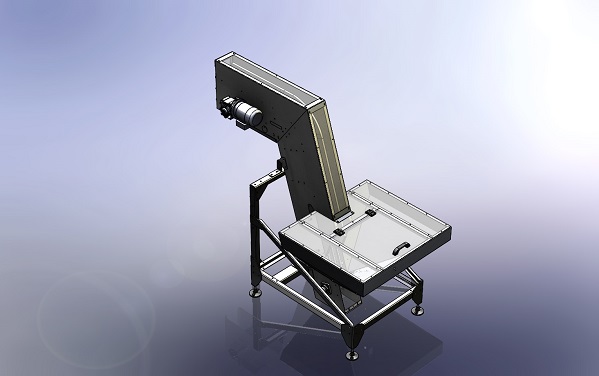

  • TPRV STANDARD MODEL

    • Hopper capacity of 11, 15, 25 and 40 cubic feet;
    • Belt width of 6 and 12 inches;
    • Discharge height of 54, 74 et 86 inches;
    • Shaft mounted assembly;
    • Stainless steel conveyor and hopper construction;
    • Painted steel base construction;
    • Options:
      • Transparent Lexan covers with hinged access doors;
      • Fixed leveling feet or on lockable caster;

    TPRVB HIGH CAPACITY MODEL

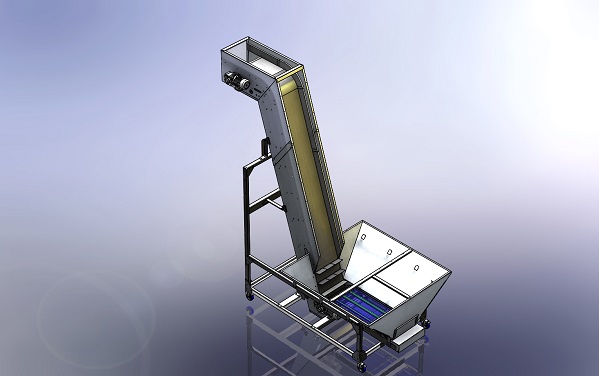

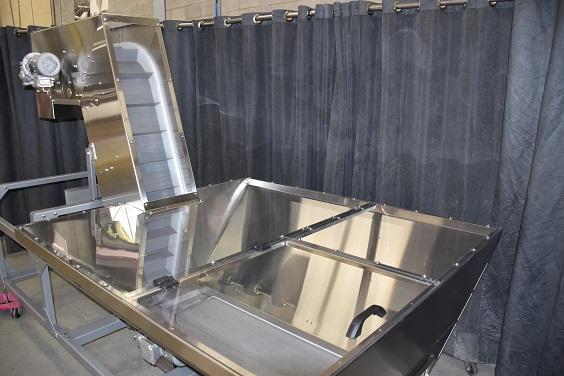

    • Hopper capacity of 30, 40, 60, 80, 100 and 120 cubic feet;
    • Belt width of 12 and 18 inches;
    • Discharge height of 58, 86, 120 and 144 inches;
    • Shaft mounted assembly;
    • Stainless steel conveyor and hopper construction;
    • Painted steel base construction;
    • Options:
      • Transparent Lexan covers with hinged access doors;
      • Fixed leveling feet or on lockable caster;

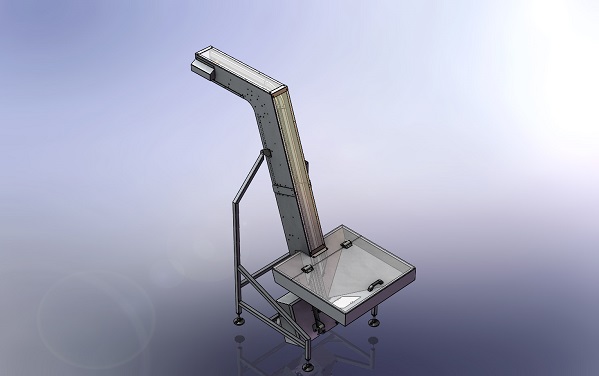

    TPRWS8-88 PHARMACEUTICAL MODEL

    • Hopper capacity of 8 cubic feet;
    • Belt width of 6 inches;
    • Discharge height of 88 inches;
    • Shaft mounted assembly;
    • Full stainless steel construction;
    • Options:
      • Transparent Lexan covers with hinged access doors;
      • Fixed leveling feet or on lockable caster;
