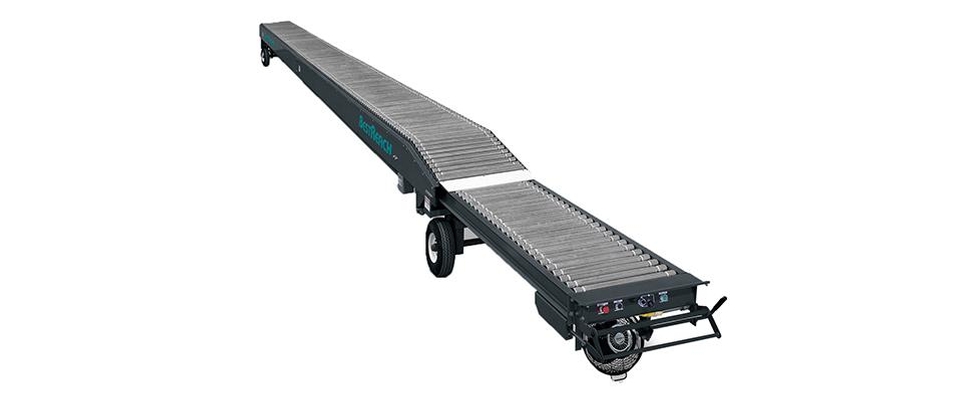

Rigid Drive Out Roller

Rigid Drive Out Roller Conveyors

The rigid roller drive out conveyor is built tough to handle those heavy volume and high impact shipping jobs that run multiple shifts throughout the day. It is the ideal conveyor for packages of various sizes. These conveyors are designed to service 53? trailers and they allow a single operator to float across multiple dock doors to maintain efficiencies.

Rigid Drive Out Roller
    • Load capacity 100 lbs/ft
    • Maximum live load at any given time 1000 lbs.
    • 3” axle centers
    • 1.9” diameter steel rollers powered by DC drive
    • 12” ground clearance
    • 36” to 48” fixed infeed height
    • 28” to 40” fixed discharge height
    • 45 FPM in and out travel speed
    • Large 17” solid rubber tires never go flat and easily move over uneven floors and dock plates
    • Structural channel base
    • 1.5 HP gear motor for extension
    • 480VAC 3 phase standard via Igus energy chain
    • Dry contact to feeder conveyor for emergency stop
    • Input from feeder conveyor for emergency stop
    • Interlock signal to feeder conveyor for full line
    • 5 – 6 degrees left to right powered steering with joy stick
    • Guide track keeps unit aligned under feeder conveyor
    • In-motion warning alarm
    • Accumulation zone lengths 40” – 49”
