Skate wheel
Skate wheel

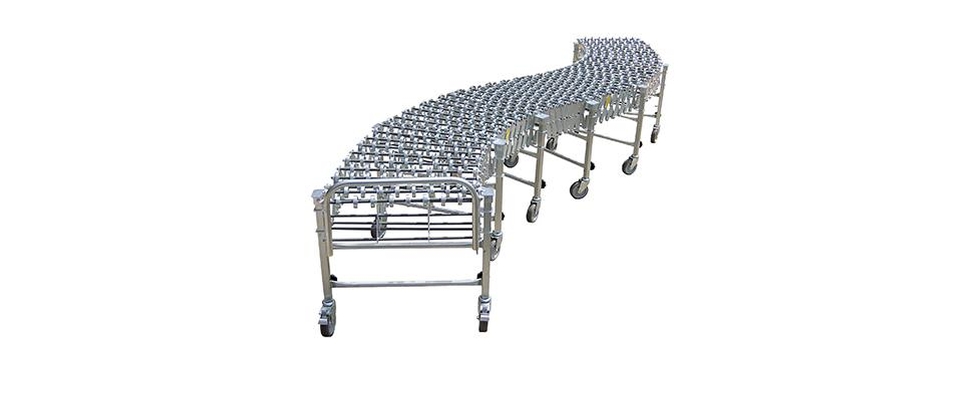

An extremely durable, heavy duty, gravity conveyor that provides the strength necessary to handle heavy cartons in high volume applications.
-
- Load capacity 376 lbs/ft
- Steel skate wheels with steel ball bearings
- 5 ¼” axle centers
- 28” – 36” adjustable conveyor heights (AL ONLY) using hand knobs to raise or lower the legs for 5” casters
- 29” – 37” adjustable conveyor heights (AL ONLY) using hand knobs to raise or lower the legs for 6” casters
- Fixed leg (FL ONLY) height adjustments are determined per application and are preset by set screws.
- Heavy duty steel square tubing zinc plated legs offer longer service life and stability
- Welded double horizontal leg braces
- Heavy duty 5” x 1 ½” casters for easy movement with 2 total lock brake casters on each end (all conveyors up to 40’ in length) that stabilize the conveyor while in use
- Heavy duty 6” x 2” casters for easy movement with 2 total lock brake casters on each end (all conveyors over 40’ in length) that stabilizes the conveyor while in use
- 7 gauge steel side links assembled using shoulder bolts with Loctite and steel locking nuts
- 5/16” diameter axle across the width
- Self-tracking design allows packages to follow the path of the conveyor without using guards
- Couplers easily connect two or more conveyors to span greater distances for continuous package flow
- Heavy duty retractable package stop prevents packages from falling off the end of the conveyor and can be dropped down when not needed
-
