Reversing O-Ring

Reversing O-Ring

CONVEYOR ACCESSORY

Air cylinders operate reversing mechanism to reverse transfer flow.

Reversing O-Ring

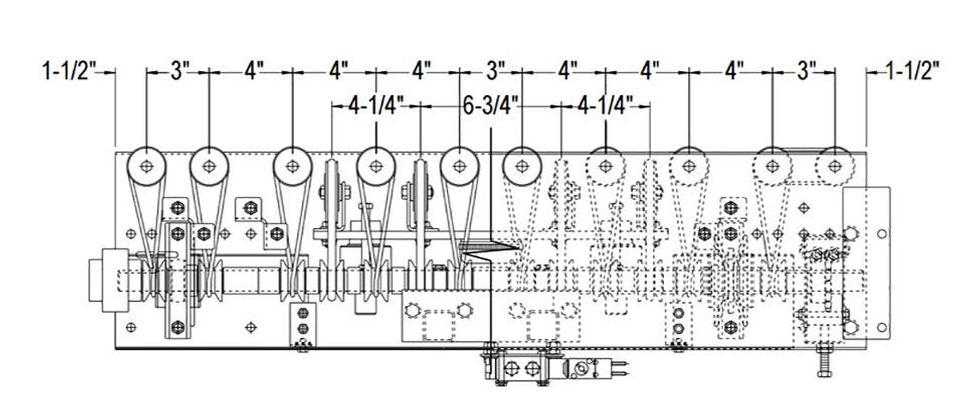

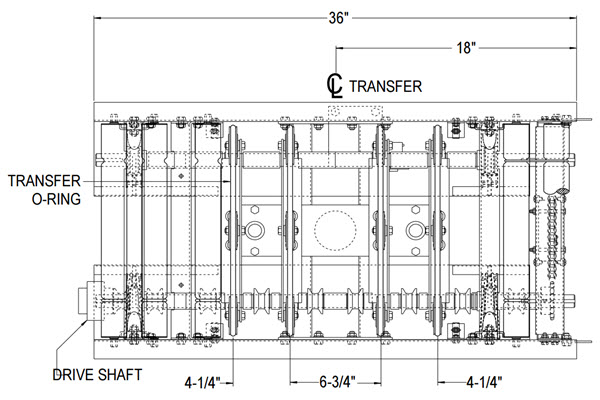

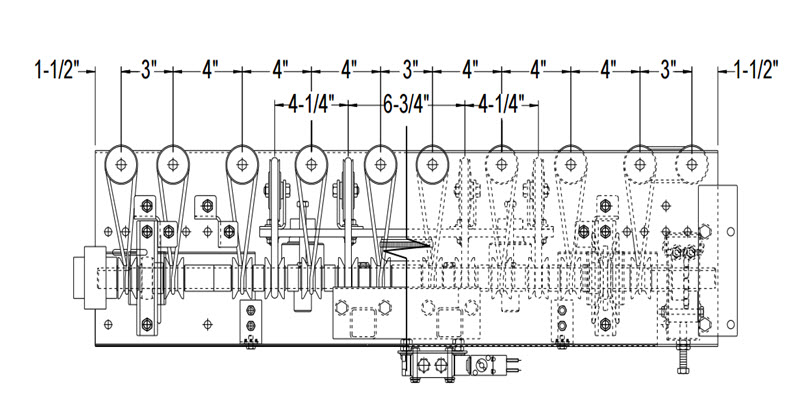

  • Reversing O-Ring Transfer / CT-200

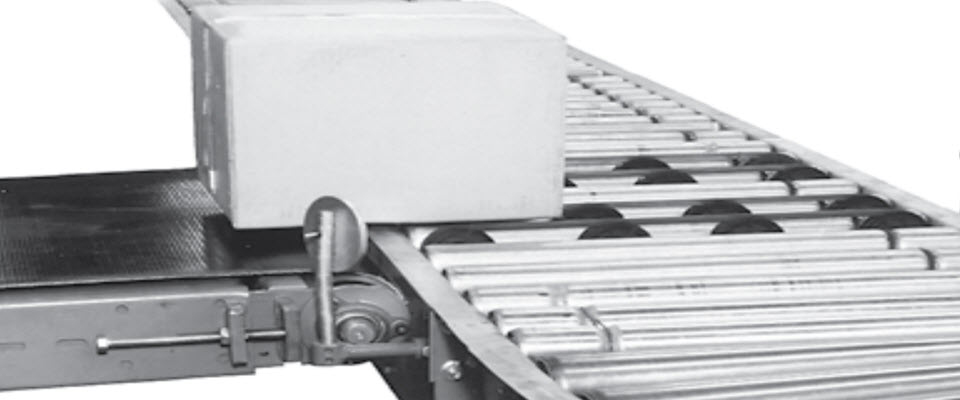

    • Reversing O-Ring Transfers are used to move products at right angles to adjacent or parallel conveyor lines.

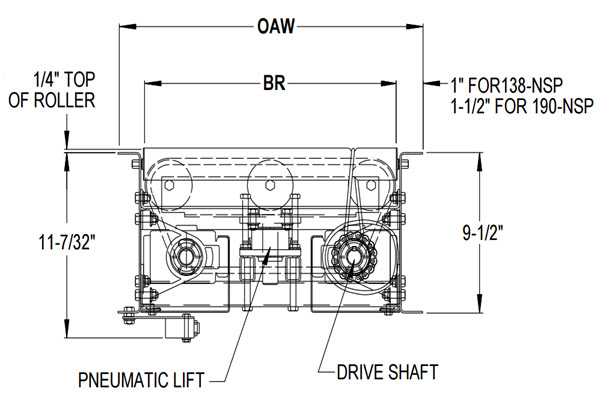

    • An air bag actuator lifts the transfer mechanism while powered O-Rings transfer the product.
    • Linear bearings are useed to guide transfer as it is raised and lowered.
    • Air cylinders operate reversing mechanism to reverse transfer flow.
    • Can be used with Models 138 and 190 NSP/NSPEZ line shaft conveyors.

    1. Reversible O-Ring
