Power Rotated Turntable (Medium Duty, Heavy Duty)

Power Rotated Turntable (Medium Duty, Heavy Duty)

CONVEYOR ACCESSORY

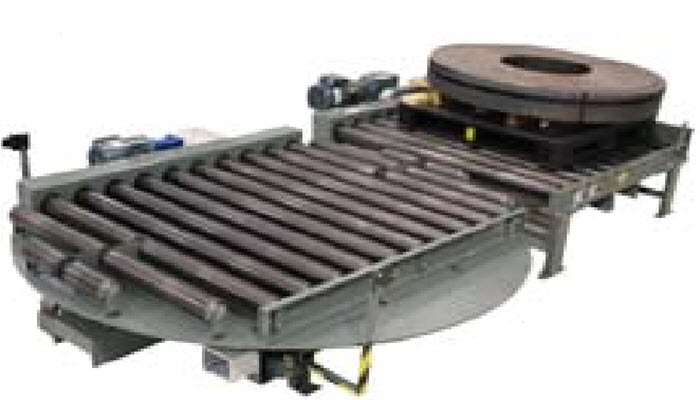

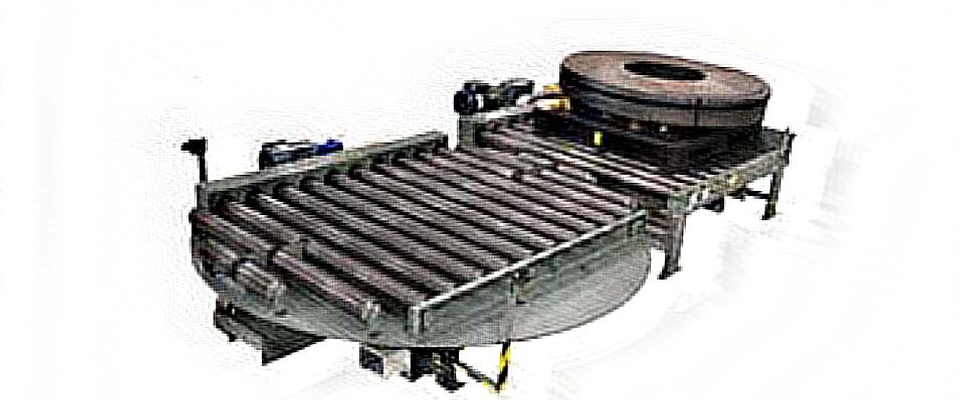

The turntable is used to rotate products up to 180°. Turntable speed is approximately 3 revolutions per minute.

Power Rotated Turntable (Medium Duty, Heavy Duty)

  • MDPT / HDPT Power Rotated Turntables

    The turntable is used to rotate products up to 180°.

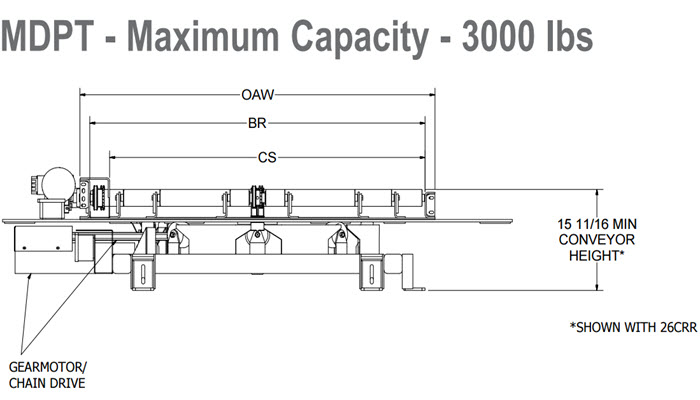

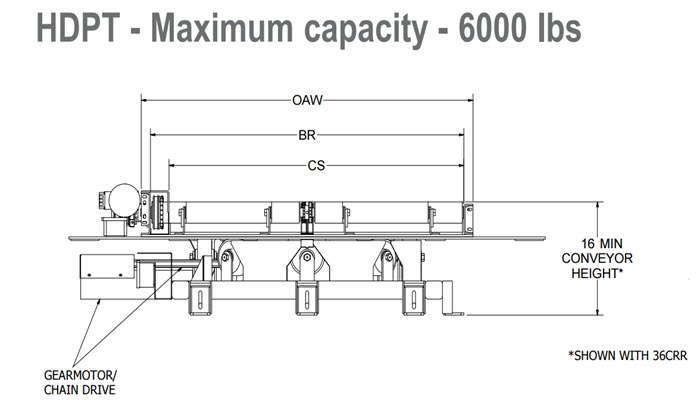

    The turntable is powered by a chain drive that is located underneath the table top.

    It has proximity switches mounted on the base to sense position and control rotation of product.

    Turntable speed is approximately 3 revolutions per minute.

    A chain cable carrier keeps wires neat and out of the way.

    Any chain roller conveyor such as; 25-CRR, 26-CRR, 36-CRR, can sit on the table top.

    Due to sprocket sizes, only the 26-CRR or the 36-CRR is available with powered transition rollers; the others are only available with gravity transition rollers.

    1. Power Rotated Turntable
