Chain Transfers

Chain Transfers

CONVEYOR ACCESSORY

Ideal for moving your products at right angles to adjacent or parallel conveyor lines

  • Chain Transfers are used to move products at right angles to adjacent or parallel conveyor lines.

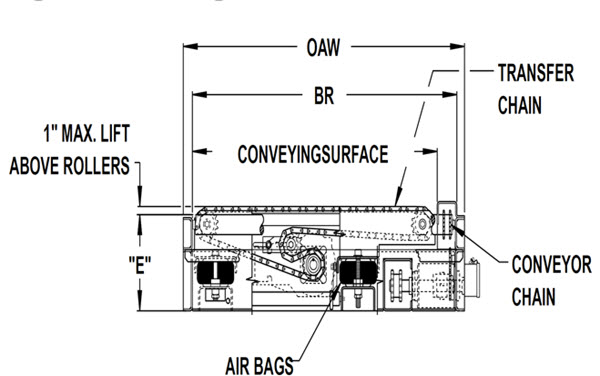

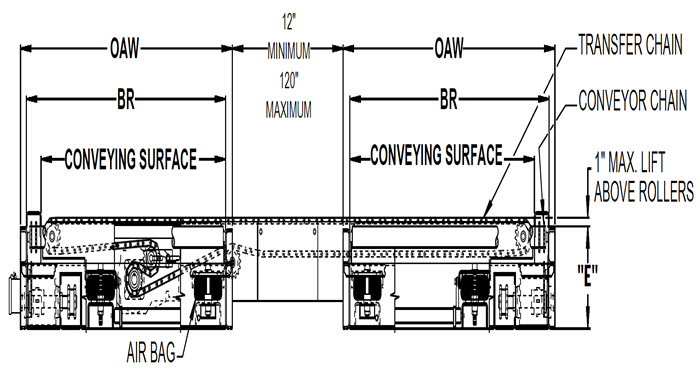

    Air bags lift the transfer mechanism while powered chains transfer the product.

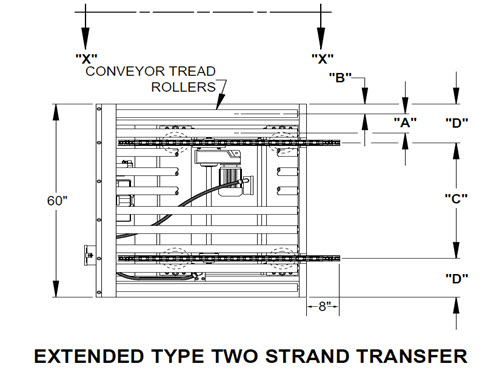

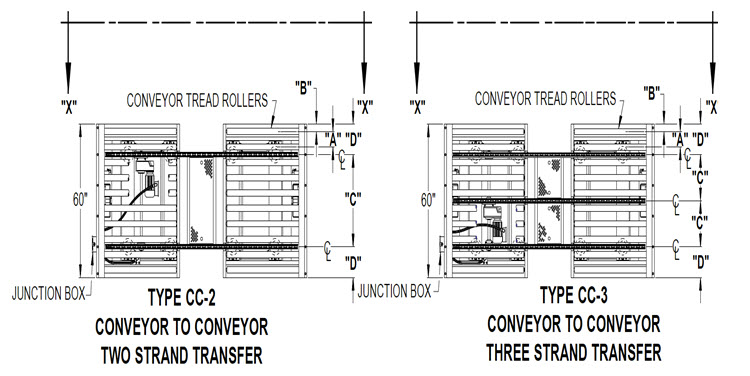

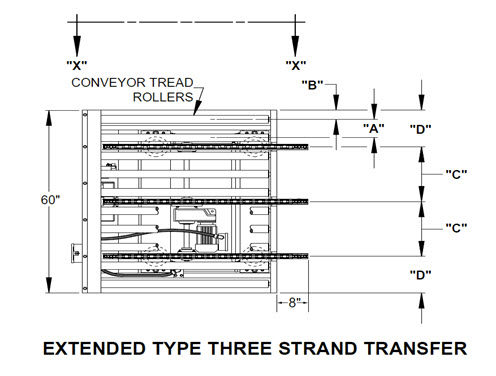

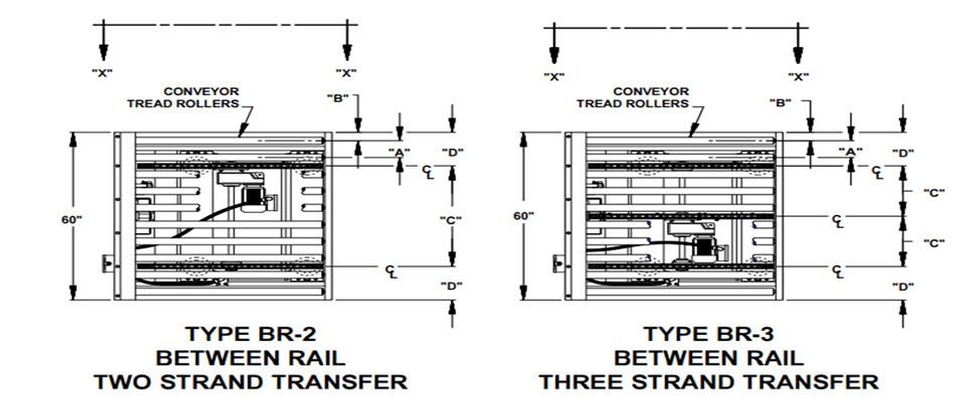

    Two (2) or three (3) strands of chain are available in either between rail (BR), conveyor to conveyor (CC), or Extended types.

    Chains run on UHMW polyethylene wearstrips to reduce friction.

    Can be used with Models 25-CRR, 26-CRR or 2511-CRA and 2511-CREZ chain driven roller conveyors.

    1. Chain Transfers
